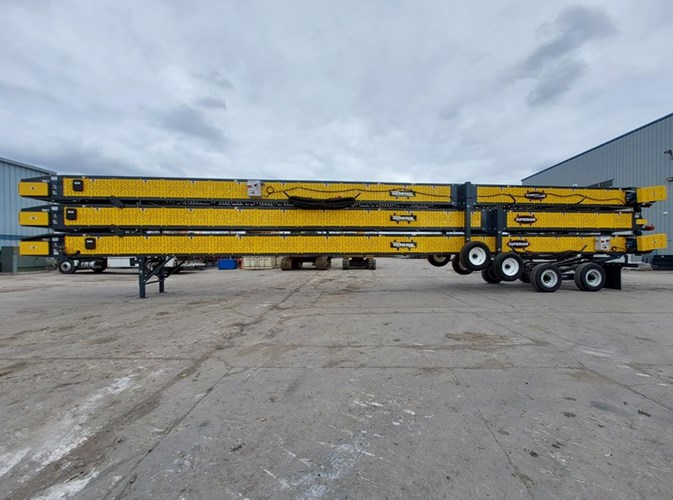

2026 Superior Conveyor - Transfer 36X70-STSP
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR SLIDE PAC
Inventory ID
E00073547
Serial
2825682
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00073547
- Status: On Rent
- Make: Superior
- Model: 36X70-STSP
- Year: 2026
- Serial#: 2825682
Notes
- SUPERIOR 36" X 70- SLIDE-PAC CONVEYOR SYSTEM EQUIPPED AS PER BELOW:
- CONVEYOR FRAME: - NO TOP CROSS LATTICES
TRAILER UNIT:
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 5/16"
- LATTICE MEMBERS: 2" X 2" X 3/16"
MIDDLE AND TOP UNIT:
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES 4" X 4" X 1/4"
- LATTICE MEMBERS: 2" X 2" X 3/16"
- ROLLER ASSEMBLY: SINGLE SET ON HEAD END FOR EASY LOADING AND UNLOADING - DRIVE SPECIFICATIONS:
- DRIVES: CLASS II HEAD END
- GEAR REDUCERS: DODGESHAFT MOUNT
- MOTORS: 20 HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 750 STPH OF 100 PCF MATERIAL 25 DEGREE SURCHARGE (90% FINES 10%
SPHERICAL LUMPS 7" MINUS
- BELT SPEED: 350FPM
SUPERIOR PULLEYS; CROWN FACED:
- DRIVE PULLEYS: 16" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEYS: 14" DIAMETER CEMA CHEVRON PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE UPS: SCREW TYPE - PORTABILITY:
- CONVEYOR SPLICE: ONE PIECE TRUSS FRAME
- TOWING EYE: PINTLE TYPE HITCH
TRAILER UNIT:
- V-TYPE AXLE: 7-4" FIXED DISCHARGE HEIGHT WALKING BEAM AXLES NON-SWIVELING
11R-22.5 WHEELS AND TIRES
- SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS
- FIFTH WHEEL: ON TRAILER UNIT
- BRAKES: COMPLETEAIR SYSTEM
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INCLUDED
- TOW EYE: PINTLE TYPE HITCH
MIDDLE UNIT:
- STRUT AXLE: 10-6" ADJUSTABLE DISCHARGE HEIGHT NON-SWIVELING SINGLE 11-22.5 AG
WHEELS AND TIRES
TOP UNIT:
- STRUT AXLE: 12-3" ADJUSTABLE DISCHARGE HEIGHT NON-SWIVELING SINGLE 11-22.5 AG - WHEELS AND TIRES
- FOLD DOWN LEGS: FIXED HEIGH FOR TOP AND MIDDLE UNITS
- TRAILER ADJUSTABLE: GIVES TRAILER UNIT 10-6" DISCHARGE HEIGHT - CONVEYOR COMPONENTS:
- BELTING: 3PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED SPLICES
- BELT SCRAPER: SUPERIOR EXTERRA PRIMARY
- SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- MOUNTING: RECESSED INSIDE FRAME
- LOAD AREA: 20 DEGREE RUBBER IMPACTS 16" SPACING
- TROUGH: 35 DEGREE ON 4- SPACING
- RETURNS: URETHANE RETURN ON 12- SPACING
- SKIRTING EXTENSION: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING - - ELECTRICAL: ELECTRICAL SWITCHGEAR PANELS ON EACH CONVEYOR WITH 333- OF MAIN
POWER CORD ON EACH CONVEYOR - ADDITIONAL SPECIFICATIONS:
- POWER SUPPLY: 480V/3PH/60HZ
- PAINT: GRAPHITE GRAY WITH YELLOW GUARDING
- SIGNPLATES: GESSIGN PLATES
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- OWNERS MANUAL: 1 COPY INCLUDED FOR OPERATION MAINTENANCE AND PARTS
- CLASS II REDUCER - CLASS II HEAD DRIVE
- FOLD DOWN LEGS - FIXED HEIGHT LEGS FOR MID AND TOP UNIT
- MID ADJUSTABLE HEIGHT - 10- 6" ADJUSTABLE HEIGHT NON-SWIVELING SINGLE 11-22.5
AG WHEELS AND TIRES
- BELT UPGRADE - 3-PLY 3/16 X 1/16 330PIW
- VULCANIZED BELT SPLICE - FACTORY VULCANIZED BELT SPLICE
- PRIMARY SCRAPER - SUPERIOR EXTERRA›¼® PRIMARY BELT SCRAPER
- CEMA C IDLERS - CEMA C 5" DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS - - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES CUSTOMER IS RESPONSIBLE TO HAVEGUARDING
INSPECTED. - S/N# OF THE UNITS ARE
TRAILER UNIT: 2825682
MIDDLE UNIT: 2825683
TOP UNIT: 2825384
